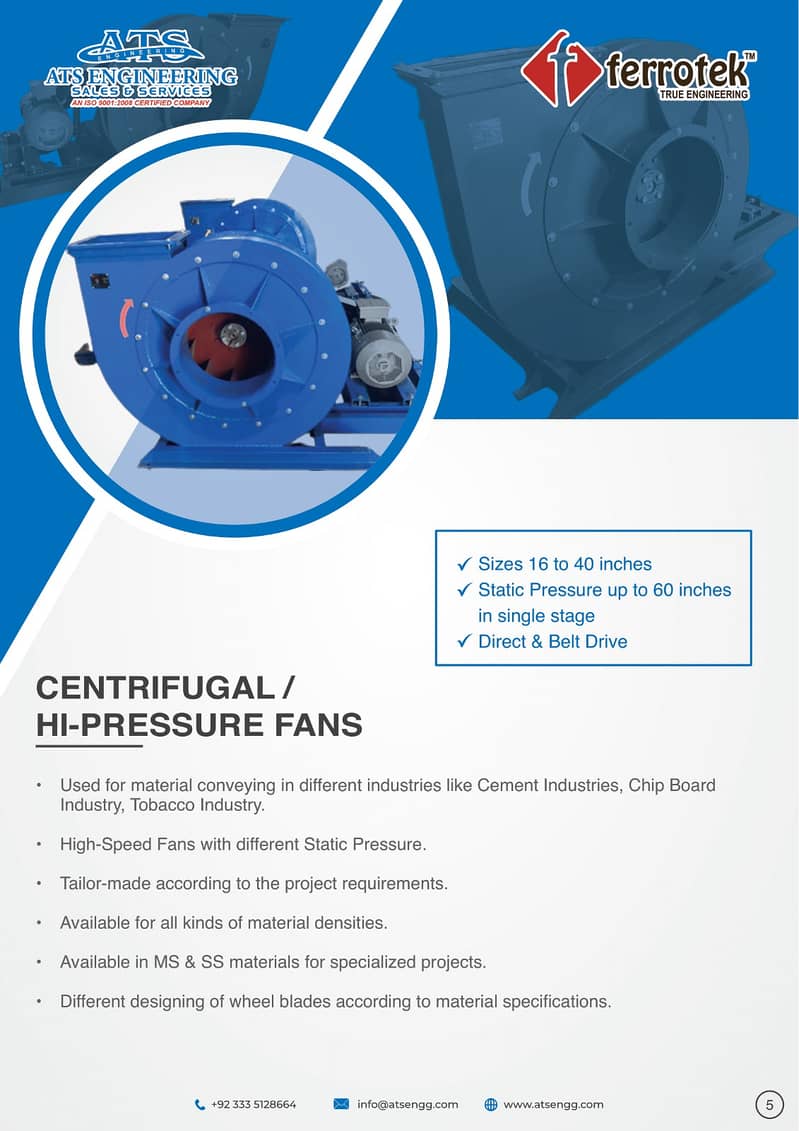

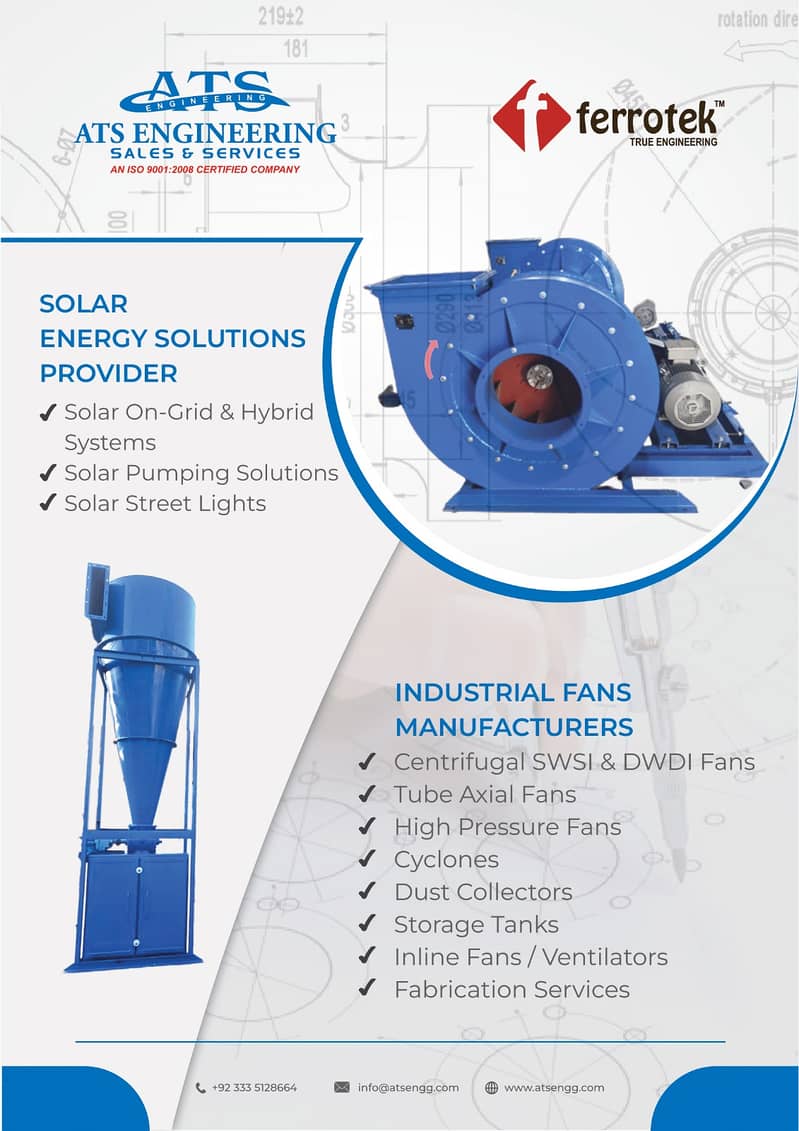

industrial fans/cyclone/SWSI & DWDI high pressure fans/tube axial fans

CENTRIFUGAL BACKWARD & FORWARD CURVED SWSI FANS & DWDI FANS CHOICE OF IMPELLERS Backward Inclined Backward Curved Size 15 to 60 inches SWSI Arrangement Self Aligning Bearings Direct Drive and Belt Drive configurations Typical rugged units with heavy gauge sheets (MS, GI, PVC) provide strength and rigidity for long service life with easy access to the motor for quick and accurate belt adjustment and ease of maintenance. Properly sized shaft and bearings of heavy-duty, self-aligning type. Bearin... CENTRIFUGAL BACKWARD & FORWARD CURVED SWSI FANS & DWDI FANS CHOICE OF IMPELLERS Backward Inclined Backward Curved Size 15 to 60 inches SWSI Arrangement Self Aligning Bearings Direct Drive and Belt Drive configurations Typical rugged units with heavy gauge sheets (MS, GI, PVC) provide strength and rigidity for long service life with easy access to the motor for quick and accurate belt adjustment and ease of maintenance. Properly sized shaft and bearings of heavy-duty, self-aligning type. Bearings are either ball or roller type dependent upon the size and class of the fan. Specialized type of bearings to suite non-standard operating conditions like temperature, extra heavy load, or other field conditions. All housings are equipped with inlet cones designed for smooth airflow. Cones are available in Fibre Glass, Mild Steel & PVC Material. DWDI CABINET FANS: Centrifugal Cabinet-type fans are available with or without a filter section. Cabinets are fabricated from M. S. sheets with reinforced members to withstand the required duty. Cabinets are available in both single and double-skin configurations. TUBE AXIAL FANS A high-performance, axial flow fan designed for both ducted or without ducted applications. Airfoil Type, Cast Aluminum Blades are designed for optimum efficiency. Low pressure, high volume, or medium pressure with high volume. Type of blades, hub ratio, and solidity, all have been incorporated in the design of each component Size 20 to 60 inches Air Volume 5000 to 150,000 CFM Variable Pitch Blades Direct & Belt Drive Configuration Suction & Discharge mesh for protection CYCLONE Size 24"to 54" 300 CFM to 10,000 CFM With Star Valve & Gear Box With MS & SS Sheet Cyclone & Dust Boх Modular Manufacturing Cyclone dust collector is designed specifically for high dust load and product recovery applications. It has a mechanical separator that uses centrifugal force to remove dust particulate from the air in industrial applications. An economical solution to a wide range of dust collection problems. Can be used alone, with optional bag filter assembly. Applications from 300 to 10,000 CFM. Heavy-duty construction for long life and low maintenance. DUST COLLECTOR Compact Physical size Extended Aluminum compressed air manifold. Modular Manufacturing Solenoid valve & Electronic Timer Polyester-felt Tubular Bag Filters Standard finish with enamel paint BAG DUST COLLECTOR High-Efficiency Centrifugal with MS & SS Construction. Filter bags of Cotton & Polypropylene or any required materials. With Star Delta Starter, Star Valve & Dust Bin. Packaged Dust Collectors are complete, manual & automatic, continuous, high-efficiency dust extraction and collection unit. The design has been optimized to maximize the operational efficiency and effectiveness, ease of maintenance and minimize downtime. STORAGE TANKS Storage Material: Water, Chemicals, Oils Steel Grade: SS316, SS316L, SS304, SS304L Storage Capacity: 0-250 L, 250-500 L, 500-1000 L, 1000-5000 L, 5000-10000 L Max pressure(PSI): 0-100 psi, 100-150 psi Tank Orientation: Horizontal, Vertical ATS ATS ENGINEERING SALES & SERVICES AN ISO 9001:2008 CERTIFIED COMPANY ferrotek™ TRUE ENGINEERING ATS Ferrotek™M Fabricator storage system, max. capacity 250~ 1000 Galon, MS Sheet and S. S sheet storage tanks, all types of Oil & Water Horizontal and Vertical Storage tanks. Storage Tanks with a wide range of applications & types: Kitchen exhaust Hospitals Offices Bathroom exhaust Apartments / DEPOS Light manufacturing Sizes 10 to 30 Inches Backward & Forward Curved Wheel INLINE FAN / VENTILATORS Direct & Belt-Drive Configurations Easy positioning and Quick Installation Construction with/without Filter Ventilators are adaptable to a wide range of exhaust & ventilation applications including: Kitchen exhaust Hospitals Offices Bathroom exhaust Apartments / DEPOS Light manufacturing Show More
